Stock PTFE Lined Tubing

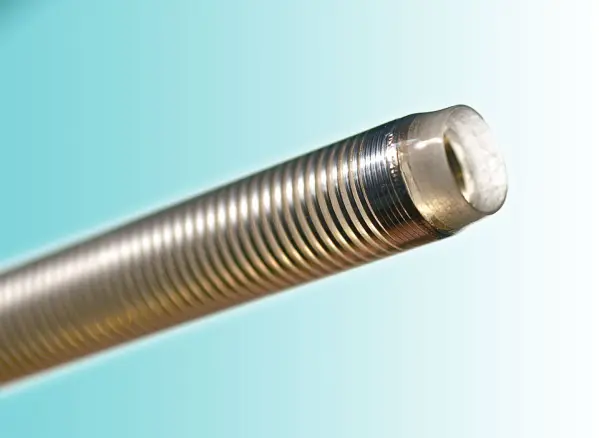

tan PTFE lined coil tubing
PTFE lined coil tubing

Within catheter tubing applications, PTFE liners are utilized on the I.D. of the tubing to reduce friction and allow other devices to pass through with less resistance. PTFE lined tubing provides extremely strong adhesion and bonding qualities, while also providing excellent chemical resistance and dielectric properties.

At Duke Extrusion, we can produce quick-turn PTFE lined tubing in a wide range of standard sizes, including those with reinforcements such as coil reinforced tubing and braided composite tubing. We can provide tubing in both single and multiple durometers as well as single and multiple lumen configurations. We stock a wide range of liners from 2 to 24 Fr and can incorporate them as lining for catheter tubing.

Contact us today for more information regarding our stock PTFE lined tubing customizations including custom options for extrusions, jackets, braids, coils, and more. Call us today at 831-420-1104 and we will gladly discuss how our stock PTFE lined tubing can be manufactured to your project’s exact specifications.

PTFE Lined Tubing Material Options

PTFE lined catheter tubing is bondable to other components, such as metallic and polymeric marker bands, luer fittings, and hypotubing. This tubing can also be over-molded with catheter shaft components such as pull rings and device deployment mechanisms. Duke Extrusion’s stock PTFE Lined Tubing is available in several material options including:

PTFE Lined Tubing Modification Options

At Duke Extrusion, we utilize etching to add custom modifications to your PTFE lined tubing products. This process allows additional layers of other materials to be incorporated into your tubing design. Our quality design engineers can produce custom PTFE lined tubing that is strong, reliable, and provides enhanced durability.

Stock PTFE Lined Tubing can also be over-molded with catheter shaft components such as pull rings and device deployment mechanisms. Additionally, end conditions allow us to terminate for PTFE liners before the ends of the tubing itself for formable tips. Customers can specify the length of end conditions for liners.

Sterilization Considerations

PTFE is not a gamma compatible material, so appropriate sterilization should be considered when ordering catheter tubing with a PTFE liner. If a gamma-compatible, lubricious liner material is required, we can use PebaSlix as a replacement for PTFE liners.

Stock PTFE Lined Tubing Thickness & Reinforcement Options

PTFE liner thickness varies from 0.0005” to 0.0025”, depending on the size of the catheter tubing. Multi-durometer PTFE lined catheter tubing is also available, with or without coil or braid reinforcement as your application requires.

PTFE vs FEP Tubing

Due to their high chemical resistance, high and low temperature capabilities, and resistance to a wide range of chemicals and elemental conditions, stock PTFE and FEP lined tubing products can both be utilized in a variety of applications. FEP Tubing is differentiated from PTFE Tubing due to FEP’s lower heat shrink temperature and increased clarity and flexibility.

Contact Duke Extrusion for Stock PTFE Lined Tubing Today

At Duke Extrusion, we can customize and incorporate PTFE Lined Tubing into our entire spectrum of tubing offerings. Our fast, efficient manufacturing processes, superior quality products, and innovative designs help us consistently meet or exceed customer expectations.

Get a quote on stock PTFE lined tubing based on your project’s exact specification requirements, or contact us at 831-420-1104 for more information. Need something customized to your specific needs? Visit Duke Empirical to see our in-house capabilities.
